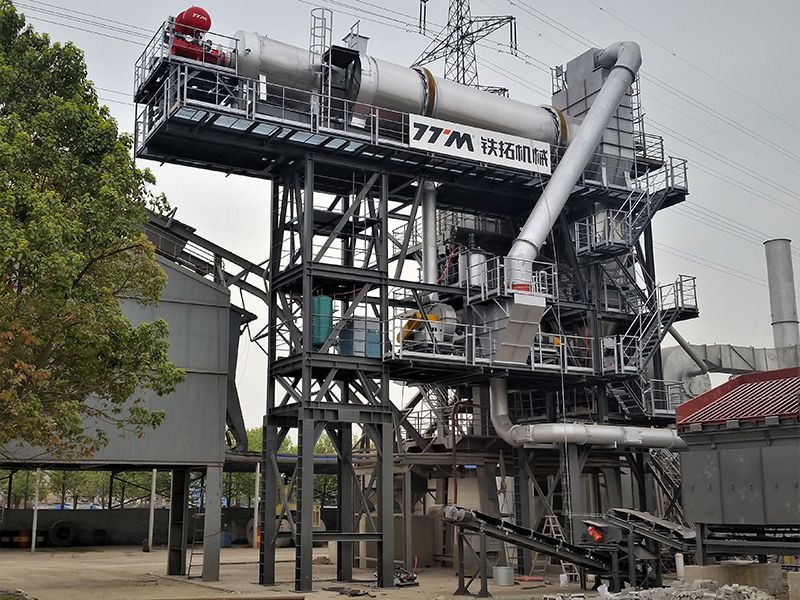

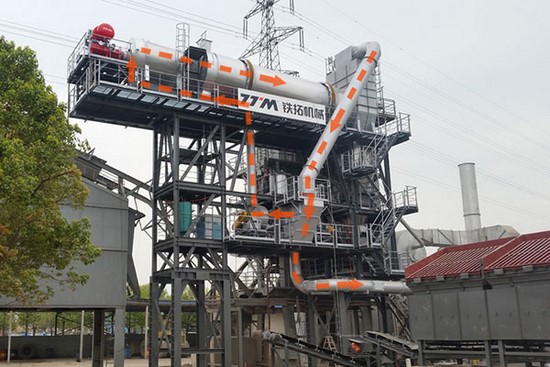

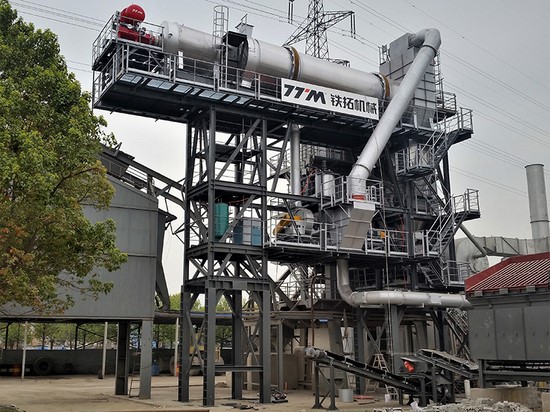

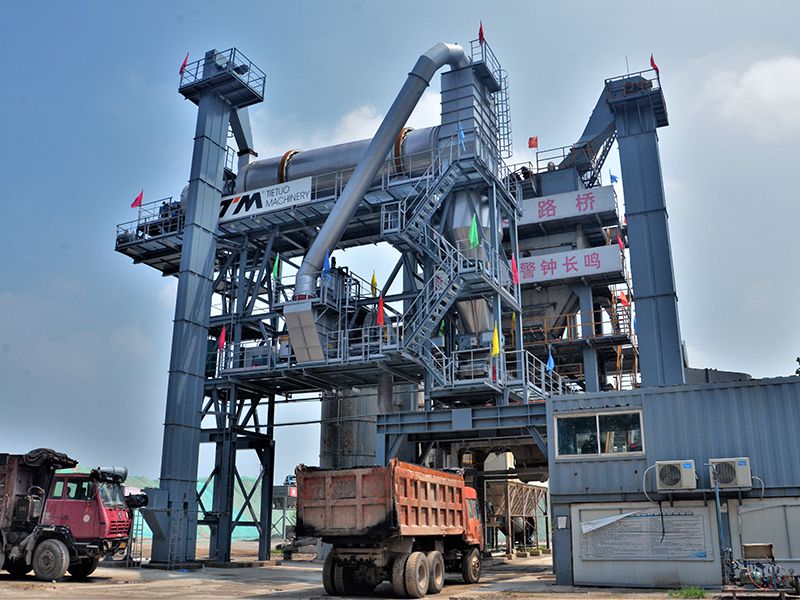

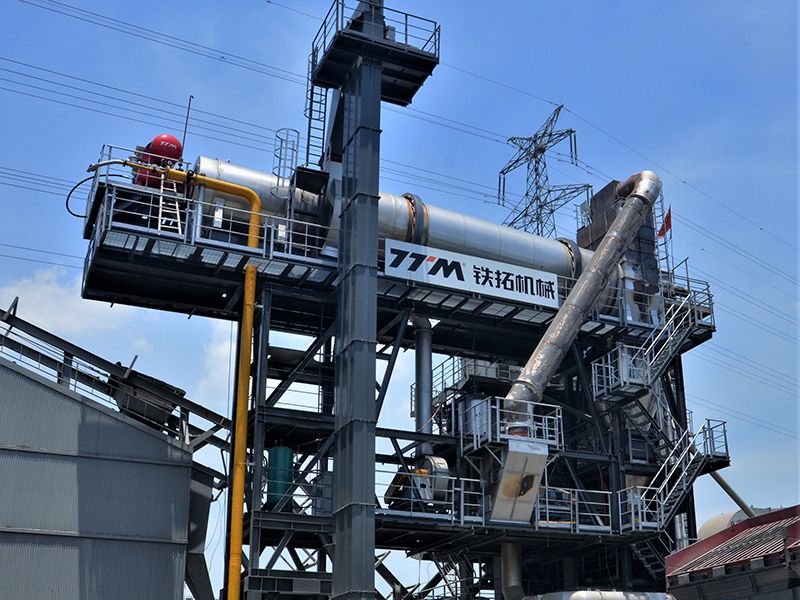

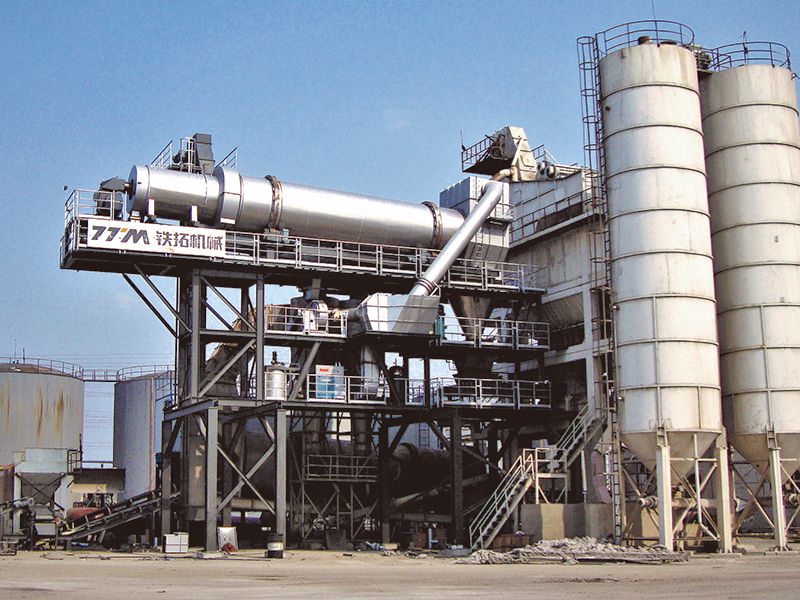

RLBZ series HMA (hot mix asphalt) recycling plant can solve the problems that reclaimed asphalt pavement (RAP) is prone to accelerate aging and generate blue smoke during heating process. This asphalt recycling plant is mainly consisted of cold RAP feed system, hot air generator, exhaust gas treatment system, RAP recycling drum, and RAP pre-mixing system (optional).
This RAP recycling plant is highly compatible with asphalt mixing equipment from various brands, and each asphalt recycling plant is designed and offered with the best solution tailored to user's individual demands of asphalt mixing.
RAP Recycling Drum
The RAP material is heated in this recycling drum. The specially designed flights in the drum can eliminate the RAP sticking problem (Patent No.: ZL200810189181.1) during the heating process. At the same time, some of flights are designed with hooks to collect large-size RAP aggregates, so that the coarse and fine aggregates are well graded to reduce the temperature difference, while preventing the bitumen from aging during the heating process.
RAP Pre-mixing System
The RAP pre-mixing system can extend the time for mixing RA with recycling agents, enabling the recycling agents to be uniformly dispersed throughout. By using this system, there is no need for additional mixing time, not only increasing the quality of RAP mixtures but also increasing production efficiency. (Patent No.: 201110063817.X)
|Model|| || || || |
|Dryer burner||Diesel, diesel + heavy oil, natural gas, oil + gas|
|Burner power (MW)||5.9||9.8||14.8||19.7|
|Combustion chamber (diameter×length)||Ø1.6×3.8||Ø1.8×4.2||Ø2×4.2|
|Storage of RAP (t)||8||10|
|Capacity of RAP mixer (kg)||600||1000||1500||2000|
|Emission handling||Secondary combustion in the dryer of virgin materials|
|RAP feeding to mixer||Feed chute or conveyor belt (optional)|
|Total power (kW)||173||197||273||294|
