Asphalt Mixing Plant

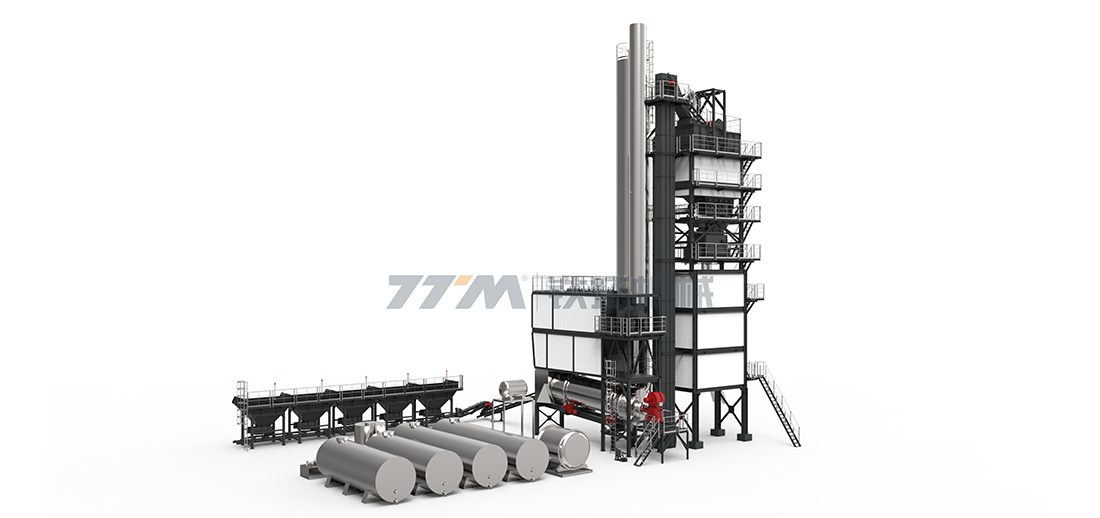

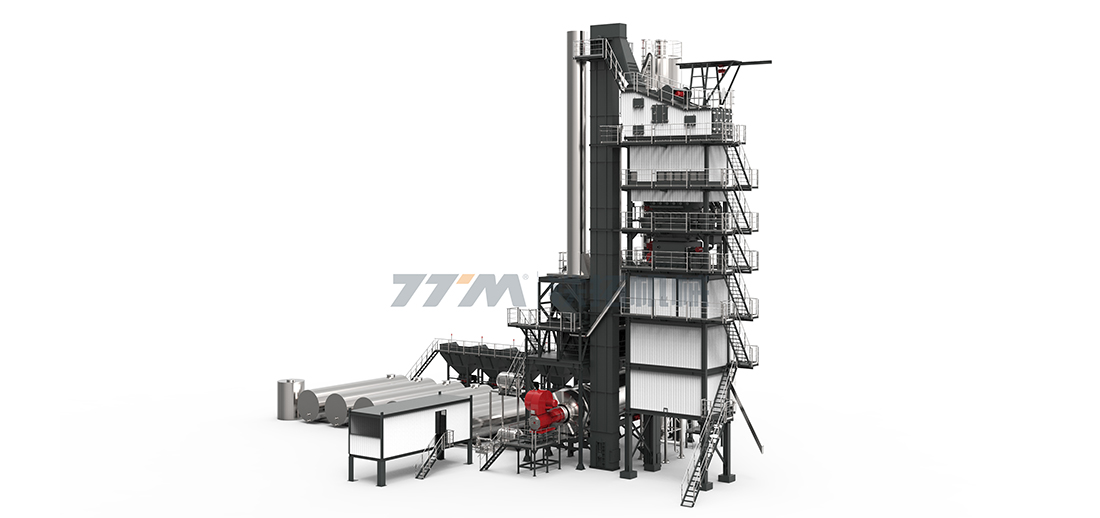

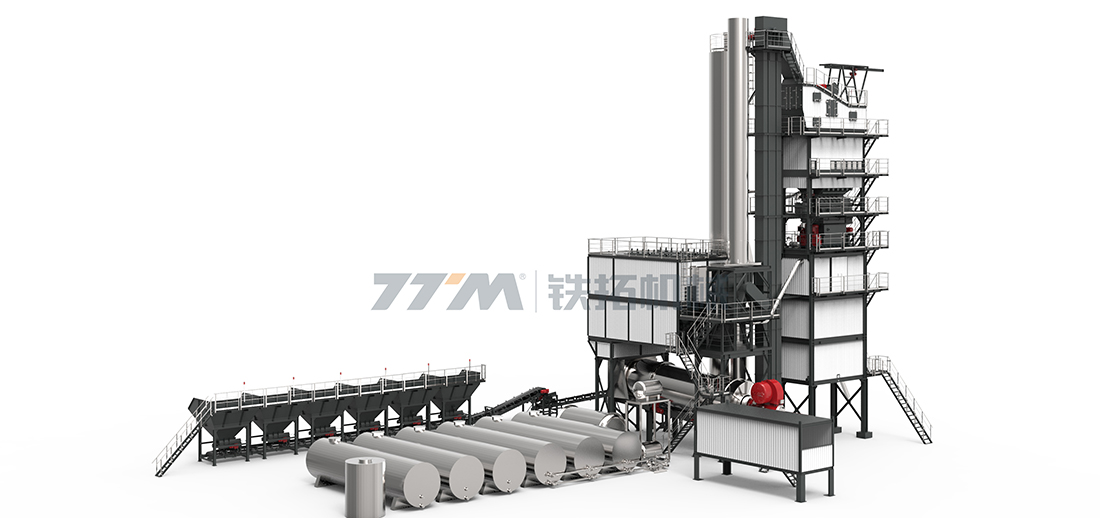

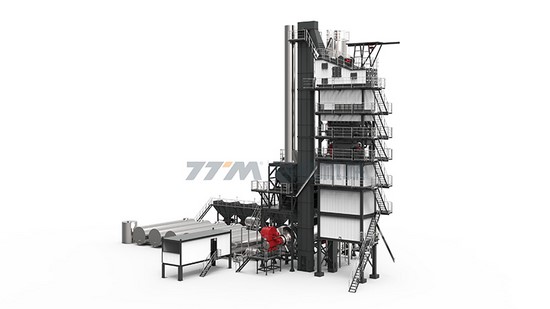

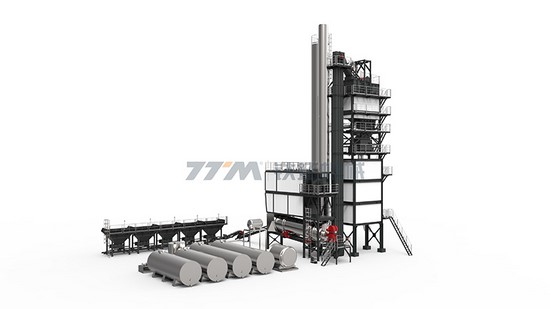

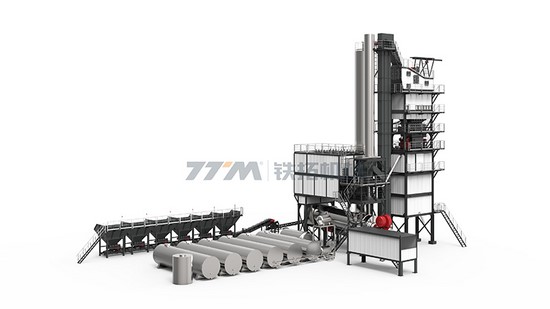

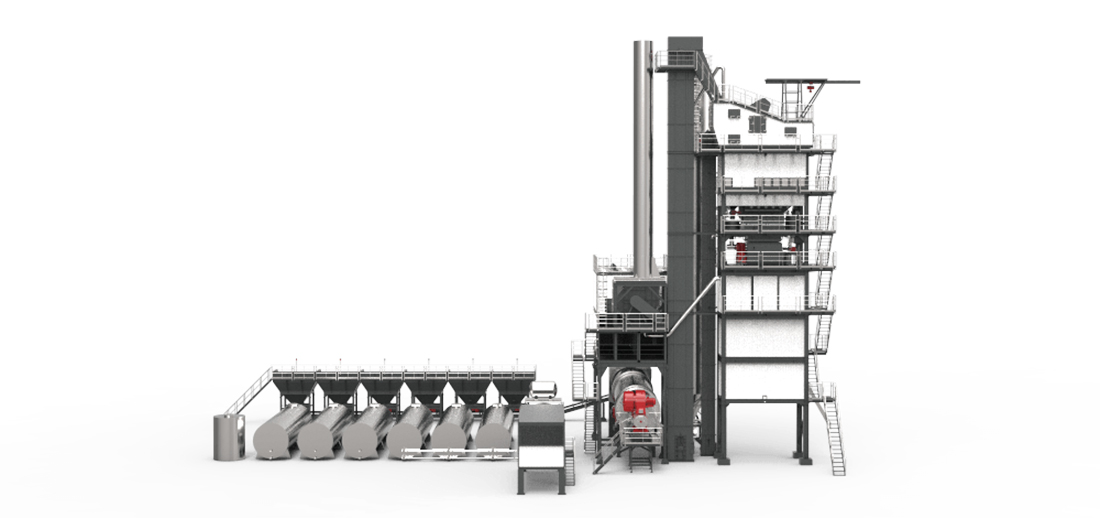

Asphalt Mixing Plant (Integrated Bins for Finished Product)
Model: GLB Fixed Type (Integrated Bins for Finished Product)

Main Applications of Asphalt Mixing Plant
Fixed in a certain location, this type of asphalt plant or asphalt mixer, is typically used for the manufacture of asphalts, which serve to construct and repair high-grade roads.

Technical Parameters of Asphalt Mixing Plant
Model GLB-1000 Asphalt Plant
Model No. GLB-1000
Throughput 80t/h
Overall Plant power 255kw
Mixing vat capacity 1000kg
Fuel consumption 6.5KG/T
Weighing accuracy Aggregate: ±0.5%
Powder: ±0.5%
Asphalt: ±0.25%
Model GLB-1200 Asphalt Plant
Model No. GLB-1200
Throughput 96t/h
Overall Plant power 300kw
Mixing vat capacity 1200kg
Fuel consumption 6.5KG/T
Weighing accuracy Aggregate: ±0.5%
Powder: ±0.5%
Asphalt: ±0.25%
Model GLB-1500 Asphalt Plant
Model No. GLB-1500
Throughput 120t/h
Overall Plant power 360kw
Mixing vat capacity 1500kg
Fuel consumption 6.5KG/T
Weighing accuracy Aggregate: ±0.5%
Powder: ±0.5%
Asphalt: ±0.25%
Model GLB-2000 Asphalt Plant
Model No. GLB-2000
Throughput 160t/h
Overall Plant power 500kw
Mixing vat capacity 2000kg
Fuel consumption 6.5KG/T
Weighing accuracy Aggregate: ±0.5%
Powder: ±0.5%
Asphalt: ±0.25%
Model GLB-2500 Asphalt Plant
Model No. GLB-2500
Throughput 200t/h
Overall Plant power 550kw
Mixing vat capacity 2500kg
Model GLB-3000 Asphalt Plant
Model No. GLB-3000
Throughput 240t/h
Overall Plant power 670kw
Mixing vat capacity 3000kg
Fuel consumption 6.5KG/T
Weighing accuracy Aggregate: ±0.5%
Powder: ±0.5%
Asphalt: ±0.25%

Features of Asphalt Mixing Plant
1. The integrated bins for storing finished products is designed in an such optimized structure that help decrease equipment-occupying space and remove hoist mechanism removed and reduce the failure frequency.

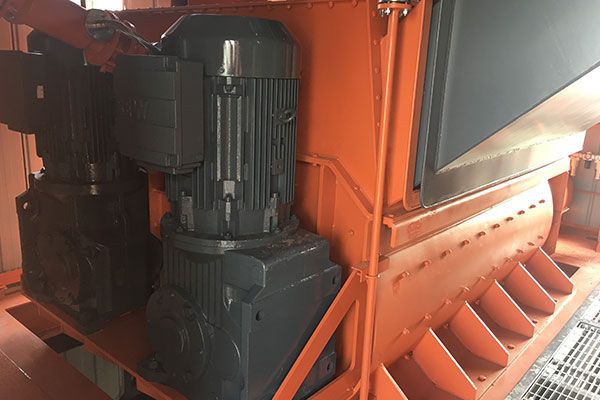

2. The uniquely designed mixing blades and exceptional power-driven mixer vat makes the mixing operation an easy, efficient and reliable work.

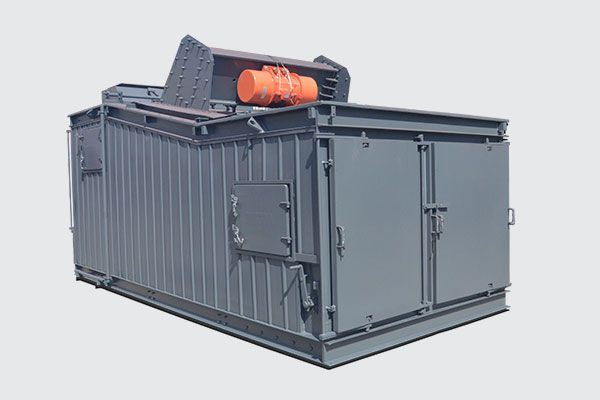

3. The linear-mode vibrating sieve is driven by imported vibration motor which helps improve the screening efficiency and reduce the plant failure frequency.
4. The aggregate elevator is lifted by double plate chains, which not only raises the service life of the hoisting machine but also improves the stability in operation;

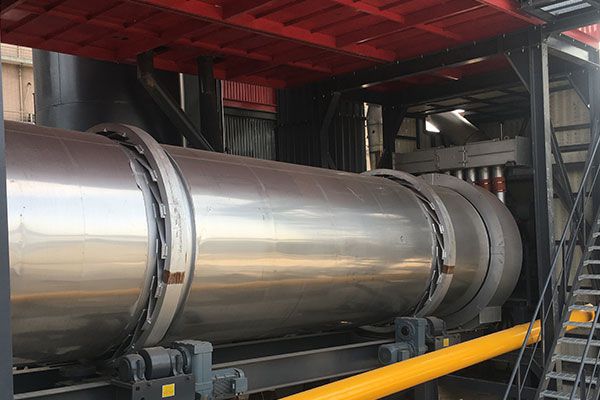

5. Optimized chain board type drying drum makes the drying system more effective and stable;
6. A modular design allows the transportation and installation to be more convenient and fast;
7. Dual machines with dual controls. Full automatic computer/man control system with a self-diagnosis and feedback program guarantees an easy and safe operation.
8. An interface is particularly fitted to connect matched heat recycling equipment.
9. Environmental-friendly equipment:
  1) first-lever inertial dust removing and second-lever bag dust filter system; a negative- pressure dustproof design of the plant body;
  2) Based upon European Standard, we offer practical and detailed solutions as to powder emission, acid materials emission, and noises control.
  3) Our asphalt mixing plant is able to be in harmony with the nature.
