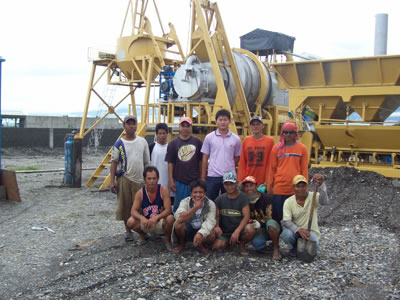

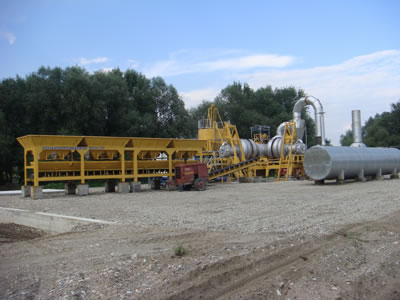

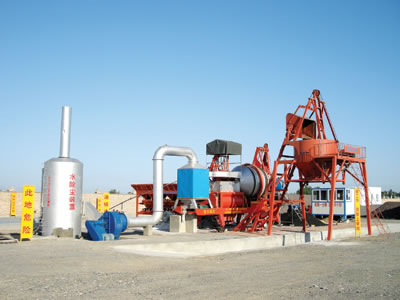

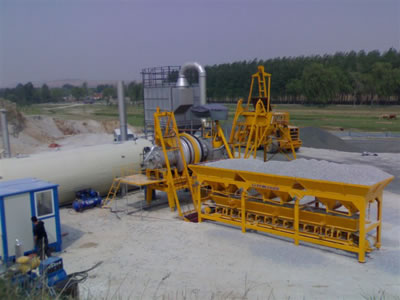

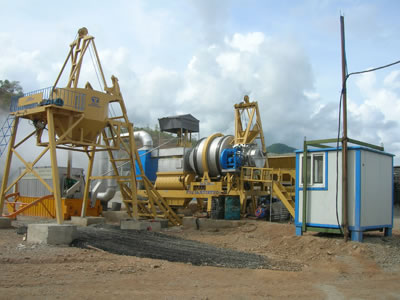

Mobile Asphalt Batching Plant

Mobile Asphalt Batching Plant
Model: QLB

Main Applications of Mobile Asphalt Batching Plant
This kind of asphalt mixing equipment is widely used for producing asphalts, known as a type of industrial materials that do play an essential role in nowadays construction and maintenance work of asphalt roads.

Technical Parameters of Mobile Asphalt Batching Plant
Model QLB-10 Asphalt Batch Plant
Model No. QLB-10
Throughput 10t/h
Overall plant power Fuel 41.5KW
Coal 57.5KW
Aggregate Batcher --
Weight of finished product silo 2t
Discharge temperature 120-180°C,(adjustable)
Fuel consumption Fuel oil: 5-7.5kg/t
Coal:13-15kg/t
Optional components Coal breaker, Water filter, Bag filter, Control House, Asphalt heating jar
Model QLB-15 Asphalt Batch Plant
Model No. QLB-15
Throughput 15t/h
Overall plant power Fuel 54KW
Coal 75KW
Aggregate Batcher --
Weight of finished product silo 5t
Discharge temperature 120-180°C,(adjustable)
Fuel consumption Fuel oil: 5-7.5kg/t
Coal:13-15kg/t
Optional components Coal breaker, Water filter, Bag filter, Control House, Asphalt heating jar
Model QLB-20 Asphalt Batch Plant
Model No. QLB-20
Throughput 20t/h
Overall plant power Fuel 63.5KW
Coal 86.5KW
Aggregate Batcher 2.3M3×3
Weight of finished product silo 5t
Discharge temperature 120-180°C,(adjustable)
Fuel consumption Fuel oil: 5-7.5kg/t
Coal:13-15kg/t
Optional components Coal breaker, Water filter, Bag filter, Control House, Asphalt heating jar
Model QLB-30 Asphalt Batch Plant
Model No. QLB-30
Throughput 30t/h
Overall plant power Fuel 104.5KW
Coal 127.5KW
Aggregate Batcher 5M3×3
Weight of finished product silo 9t
Discharge temperature 120-180°C,(adjustable)
Fuel consumption Fuel oil: 5-7.5kg/t
Coal:13-15kg/t
Optional components Coal breaker, Water filter, Bag filter, Control House, Asphalt heating jar
Model QLB-40 Asphalt Batch Plant
Model No. QLB-40
Throughput 40t/h
Overall plant power Fuel 125KW
Coal 169KW
Aggregate Batcher 5M3×3
Weight of finished product silo 9t
Discharge temperature 120-180°C,(adjustable)
Fuel consumption Fuel oil: 5-7.5kg/t
Coal:13-15kg/t
Optional components Coal breaker, Water filter, Bag filter, Control House, Asphalt heating jar
Model QLB-60 Asphalt Batch Plant
Model No. QLB-60
Throughput 60t/h
Overall plant power Fuel 157.5KW
Coal 205KW
Aggregate Batcher 5M3×3
Weight of finished product silo 9t
Discharge temperature 120-180°C,(adjustable)
Fuel consumption Fuel oil: 5-7.5kg/t
Coal:13-15kg/t
Optional components Coal breaker, Water filter, Bag filter, Control House, Asphalt heating jar
Model QLB-80 Asphalt Batch Plant
Model No. QLB-80
Throughput 80t/h
Overall plant power Fuel 200KW
Coal 276KW
Aggregate Batcher 5M3×4
Weight of finished product silo 20t
Discharge temperature 120-180°C,(adjustable)
Fuel consumption Fuel oil: 5-7.5kg/t
Coal:13-15kg/t
Optional components Coal breaker, Water filter, Bag filter, Control House, Asphalt heating jar

Features of Mobile Asphalt Batching Plant
1. Integrated design of batch type drying drum and horizontal twin-shaft mixer enables it to mix thoroughly and produce better quality finished materials.
2. Accurate in quantity measurement, and stable in quality;
3. Simple machine structure, easy to handle: drying while drum rotates in counter-clockwise direction (from burner), discharging while drum rotates in clockwise direction (from burner);
3. PLC control, touch screen with free auto/manual transfer are available for this kind of concrete mixing equipment.
4. Movable chassis structure allows a fast as well as easy transport and installation.
5. Coal and oil burner are available upon customer's request.
